High-speed page removal for maximum efficiency

Fast Side-Entry – fast, precise and vibration-free removal for optimized injection moulding cycles

Quick removal

Tool opens in less than 1 second

High accuracy

Precise and repeatable up to ±0.05 mm

Flexible use

Compact and easily expandable

Fast and precise side removal for efficient injection molding processes

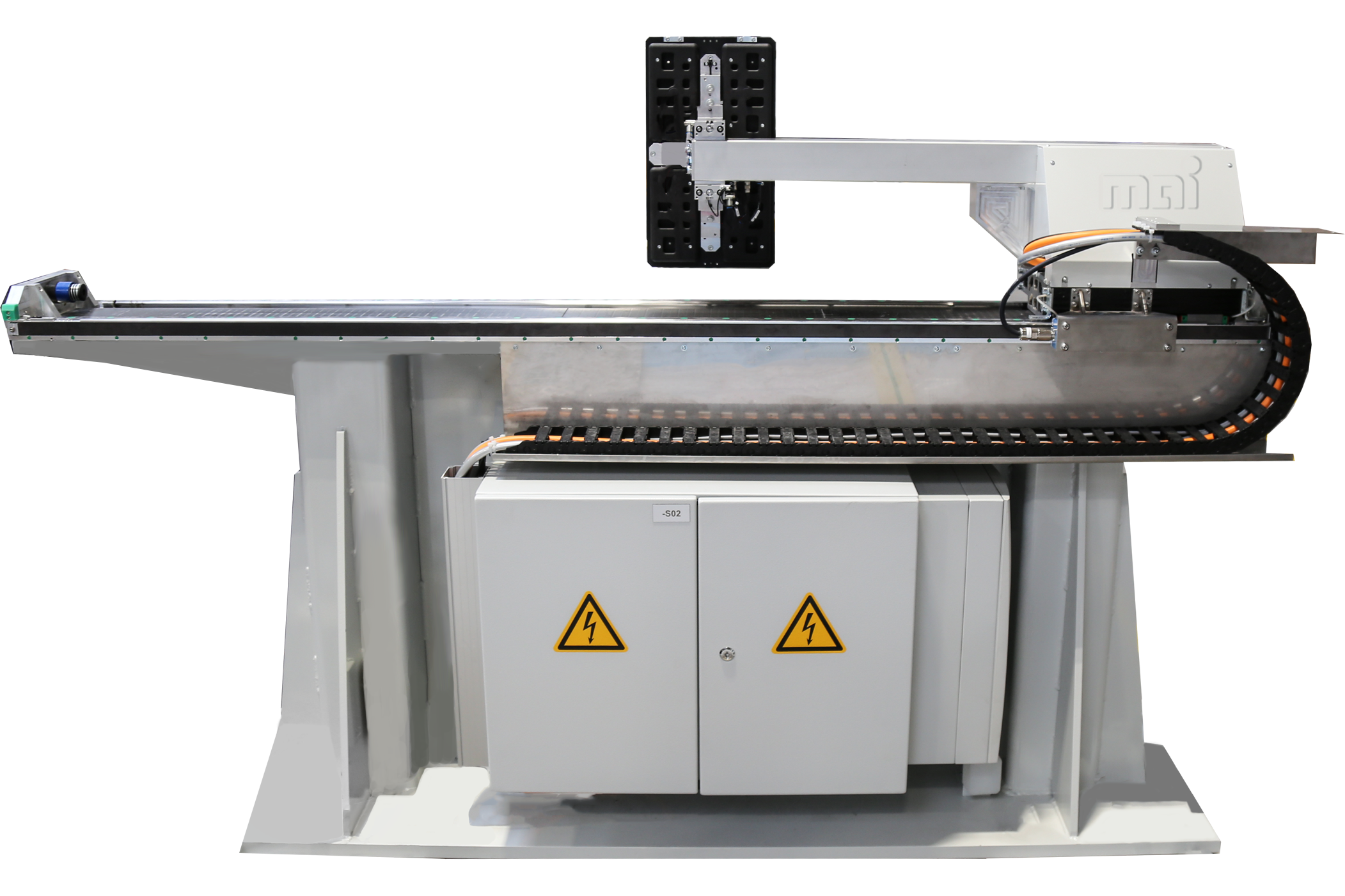

The M.A.i fast Side-Entry is a linear motorized high-speed side-entry system specially developed for injection moulding processes. It guarantees the shortest possible mold opening times thanks to fast, precise and vibration-free movements, which significantly accelerates production cycles and increases efficiency

  • Extremely fast removal times: Tool opening times of less than 1 second are possible, with speeds of up to 5 m/s and accelerations of up to 50 m/s²

  • High precision and repeat accuracy: With a repeat accuracy of ±0.05 mm, the system ensures precise part removal and minimal rejects

  • Compact design and flexible integration: The flat gripper design enables very small mold opening paths, and the stable floor console can be ideally integrated into existing cells

  • Versatile expansion options: Integrated camera inspection, cleaning, ionization, ESD version, EUROMAP interface and other options allow follow-up processes to be carried out during sampling

  • Vibration-free and low-wear drive technology: linear motors without elastic elements ensure low noise levels and low maintenance requirements

Standard-Produkt Fast Side-Entry
